Pressure gauges on a Reverse Osmosis system should be mandatory since RO membranes rely on pressure to push molecules through the perforated membrane. Without proper pressure excess waste water and low-quality product water will be produced, not to mention if the pressure is too high, it could cause irreversible damage.

There are a few different places that a pressure gauge can be installed but we highly recommend installing them after your carbon filters and before your membrane. That location will tell you if a micron filter becomes clogged and also the working pressure for your membrane.

1. Turn off the source water feeding your RO system and relieve any built up pressure by opening your product water line.
2. Determine the location you want to install your pressure gauge*.
3. Cut the ¼” RO tubing with a tubing cutter or scissors (straight cut).

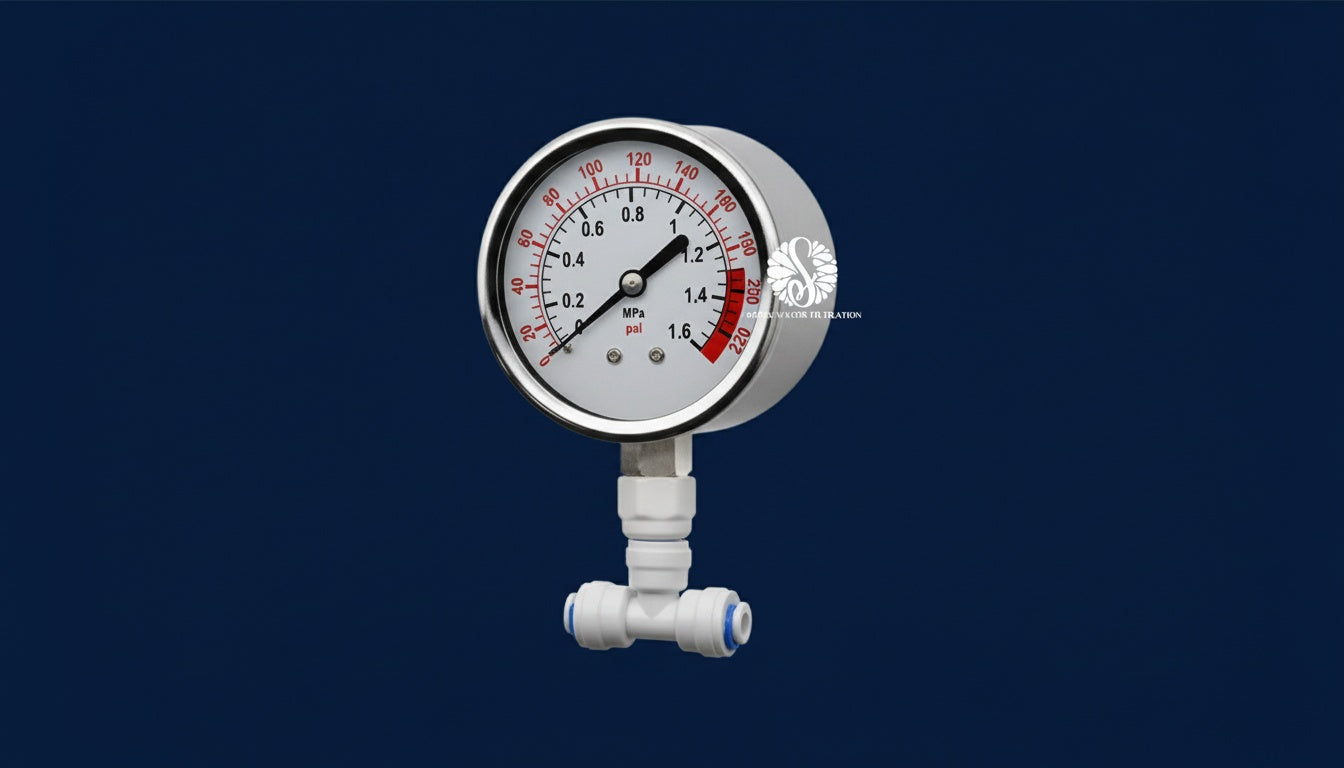

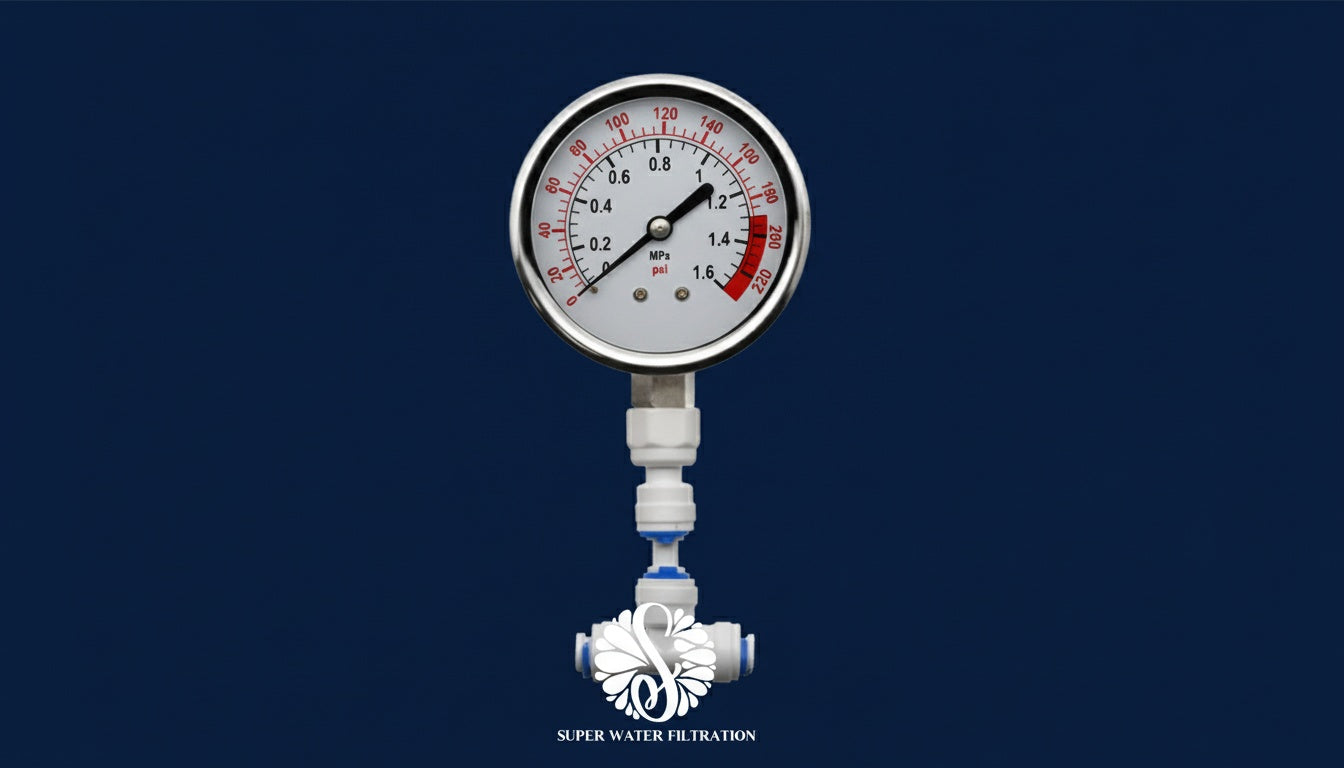

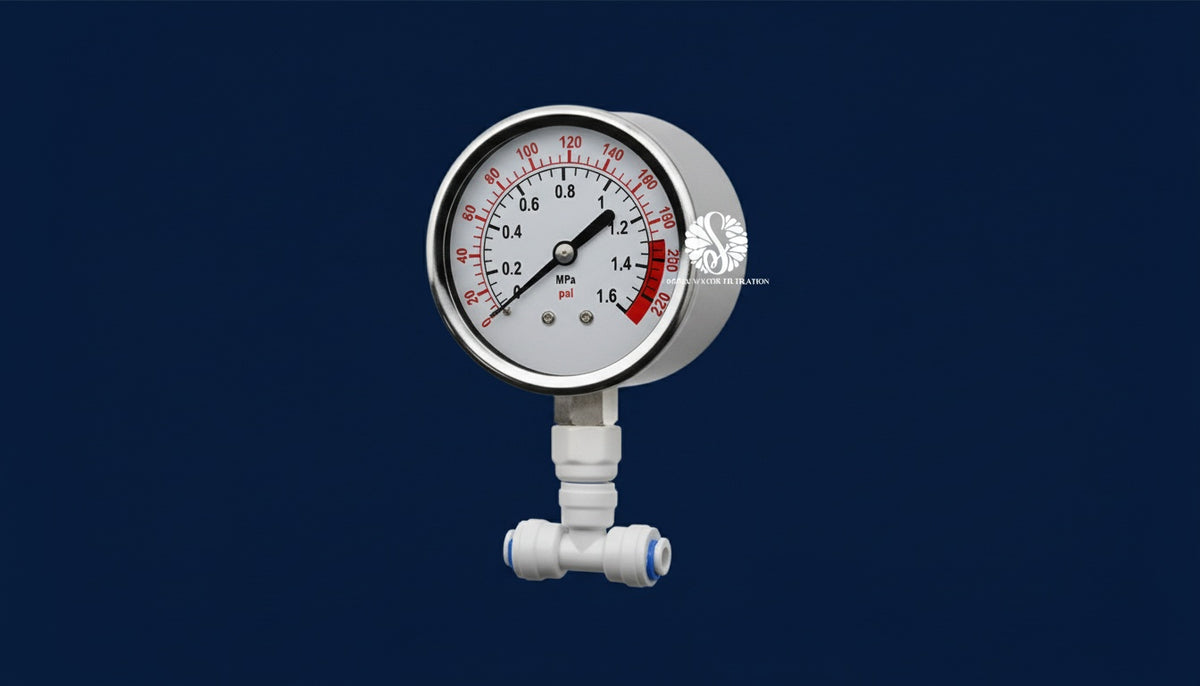

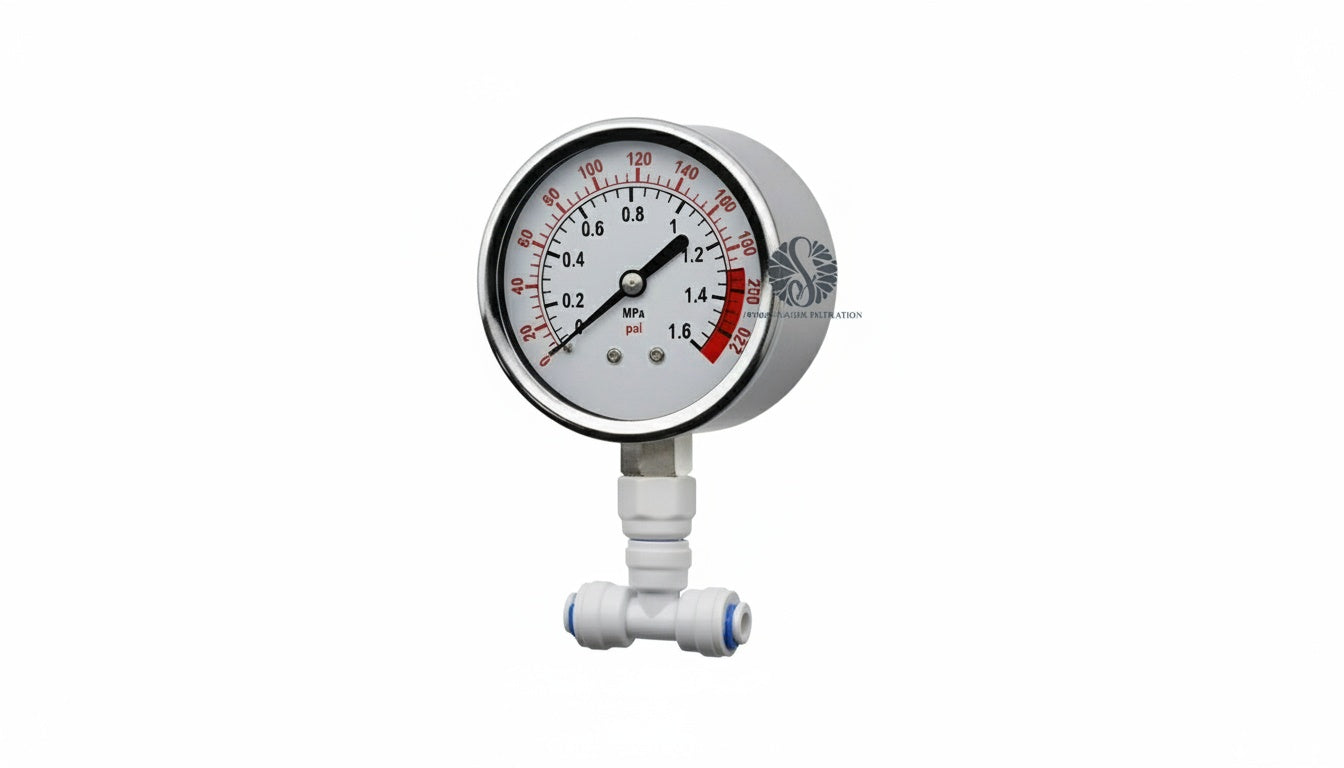

4. Install the “T” fitting making sure to push the RO tubing all the way into the push connect “T” fitting.
5. Slowly turn your water source back on and monitor the new fittings for any leaks or drips.

Note: The direction of water flow through the gauge has no impact on the readings.

*Installation Locations

Before the RO unit – A pressure gauge installed before any filters or membranes will let you know the pressure that your household tap is producing. This may change from faucet to faucet, but will remain fairly steady over time.

After Micron Filters, Before Membrane – This is our suggested mounting location. This location will show the pressure available after water has traveled through the sediement filters and carbon blocks, and what is feeding the RO membrane. Over time a pressure drop is normal and is a good sign that a micron filter is becoming clogged and should be replaced.
